Black Diamond Drill Rigs

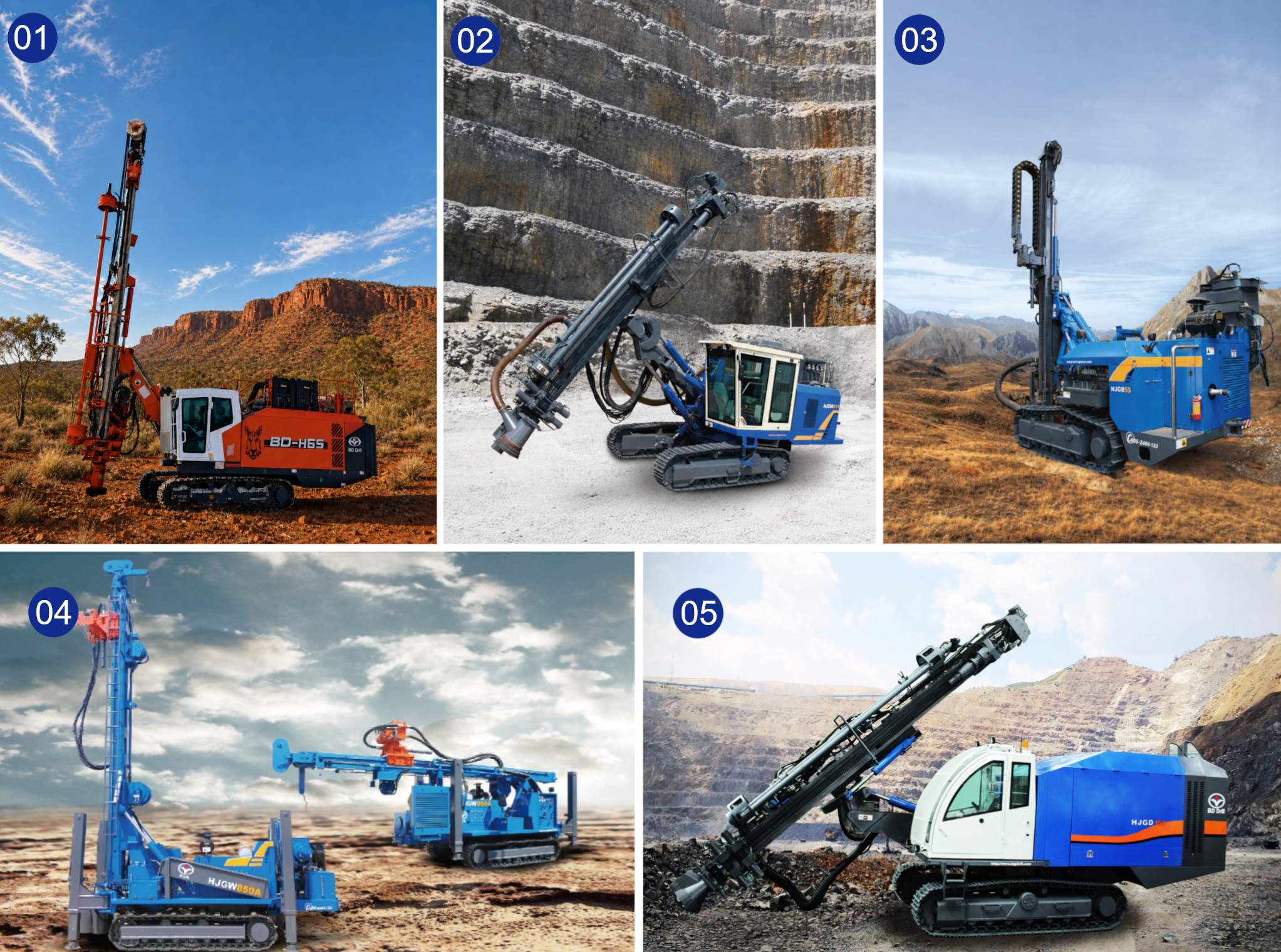

| Parameter | Type | |
| HJG-M165 | HJG-M311 | |
| Aperture | 140-180mm | 203-311mm |
| Drilling Depth | 24m | 24m |
| Adaptive Rock | f⩽8 | |
| Rotation torque | 4000Nm | 6000Nm |
| Rotary speed | 0~60rpm | 0~40rpm |
| Thrust capacity | 40kN | 75kN |
| Feed stroke | 4380mm | 4380mm |
| Lifting Speed | 0.5m/s | 0.3m/s |
| Hammer Model | HD65 | HD85/HD110 |
| Drill rod diameter | 110mm | 146mm |
| Drill rod length | 4mX6 | 4mX6 |
| Travel speed | 2.5Km/h 3Km/h | 2.5Km/h 3Km/h |
| Grade ability | 25° | 25° |
| Rising height from ground | 450mm | 450mm |
| Wind pressure | 1.38~3.2Mpa | 1.38~3.2Mpa |
| Air consumption | ⩾25m³/min | ⩾28m³/min |
| Engine power | 75kW | 93kW |
| Dimension | Length X Width X Height | |
| On transportation | 9000X2900X3400mm | 9000X2900X3400mm |
| On working condition | 7700X2900X7800mm | 7700X2900X7800mm |
| Gross weight | 17T | 18T |
| Parameter | Type | ||
| HJG-W830C | HJG-W830A | HJG-W850A | |
| Aperture | 105~311mm | 105~311mm | 130~350mm |
| Drilling depth | 300m | 300m | 500m |
| Cylinder legs | Common legs | High legs | High legs |
| Adaptive rock | f⩽8 | ||
| Rotation torque | 4400Nm | 3450Nm 6900Nm | 4250Nm 8500Nm |
| Rotary speed | 0~100r/min | 0~110r/min 0~55r/min | 0~180r/min 0~90r/min |
| Thrust capacity | 60kN | 60kN | 60kN |
| Feed stroke | 3700mm | 3700mm | 5300mm |
| Lifting capacity | 120kN | 120kN | 200kN |
| Hammer model | HD45/HD55/HD65 | HD45/HD55/HD65 | HD65/HD85/HN10 |
| Drill rod diameter | 76mm, 89mm | 76mm, 89mm | 89mm, 102mm |
| Drill rod length | 3m | 3m | 4.5m |
| Travel speed | 2.5Km/h | 2.5Km/h | 3.2Km/h |
| Grade ability | 21° | 21° | 21° |
| Rising height from ground | 300mm | 300mm | 300mm |
| Wind pressure | 1.05~2.46Mpa | 1.05~2.46Mpa | 1.05~3.5Mpa |
| Air consumption | ⩾18m³/min | ⩾18m³/min | ⩾25m³/min |
| Engine power | 93kW | 93kW | 132kW |
| Dimension | LengthXWidthXHeight | ||
| On transportation | 5800X2210X2850mm | 5800X2210X2850mm | 8085X2250X3200mm |
| On working | 4920X2210X6700mm | 4920X2210X6700mm | 5498X2250X8941mm |
| Gross weight | 8.8T | 9.5T | 12.5T |
| Parameter | Type | |
| HJG-B138 | HJG-B168 | |
| Aperture | 90~152mm | 105~180mm |
| Drilling depth | 30m | 30m |
| Adaptive rock | f⩽8 | |
| Rotation torque | 3000Nm | 4000Nm |
| Rotary speed | 0~72r/min | |
| Thrust capacity | 32kN | 32kN |
| Feed stroke | 4000mm | 4000mm |
| Lifting capacity | 32kN | 32kN |
| Lifting speed | 0.5m/s | 0.5m/s |
| Hammer model | HD45/HD55 | HD65/HD85 |
| Drill rod diameter | 76mm, 89mm | 89mm, 114mm |
| Travel speed | 2.5Km/h 3.8Km/h | 2.5Km/h 3.8Km/h |
| Grade ability | 30° | 30° |
| Wind pressure | 1.05~2.46Mpa | 1.38~2.46Mpa |
| Air consumption | ⩾18m³/min | ⩾21m³/min |
| Engine power | 75kW | 75kW |
| Dimensions | LengthXWidthXHeight | |
| On transportation | 6170X2150X2480mm | 6170X2150X2480mm |
| On working | 4360X2150X5380mm | 4360X2150X5380mm |
| Gross weight | 6.5T | 6.8T |
| Parameter | Type | |
| HJG-D120 | HJG-D165 | |
| Aperture | 90~150mm | 152~180mm |
| Drilling depth | 28m | 28m |
| Adaptive rock | f⩾8 | |
| Rotation torque | 3000Nm | 4000Nm |
| Rotary speed | 10~100rpm | 10~100rpm |
| Thrust capacity | 35kN | 40kN |
| Feed stroke | 4380mm | 4380mm |
| Lifting speed | 0.8m/s | 0.8m/s |
| Hammer model | HD45/HD55 | HD55/HD65 |
| Drill rod diameter | 89mm, 102mm | 102mm, 114mm |
| Drill rod length | 4m | 4m |
| Travel speed | 2.5Km/h 3Km/h | 2.5Km/h 3Km/h |
| Grade ability | 25° | 25° |
| Rising height from ground | 430mm | 430mm |
| Wind pressure | 1.7Mpa | 2.4Mpa |
| Air consumption | ⩾17m³/min | ⩾25m³/min |
| Engine power | 287kW | 332kW |
| Dimensions | Length X Width X Height | |
| On transportation | 11000X2500X3280mm | 11550X2716X3400mm |
| On working | 7800X2500X8410mm | 7920X2716X8410mm |
| Gross weight | 15.5T | 23T |
