Down the Hole DTH Drill Pipe Specifications

Key features of a high quality BDDrill DTH pipe are durability, accuracy and manageability.

BDDrill Drill Pipe is a thin-walled, hollow, steel and aluminum alloy piping which is used for drilling and on drilling rigs to facilitate the drilling of a borehole. It comes in a series of sizes, weights and strengths but it is generally 4 to 35 feet long. It is hollow internally which allows the drilling fluids to be pumped through it.

Black Diamond drill pipes are made from cold drawn piping, providing a superior surface finish and tolerance compared to conventional pipes made from hot rolled piping. This drastically reduces the risk of scaling from the pipes entering the hammer, a major cause of premature hammer failure.

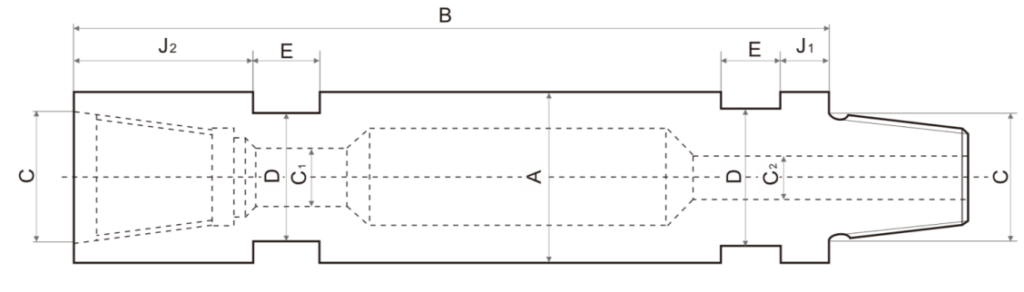

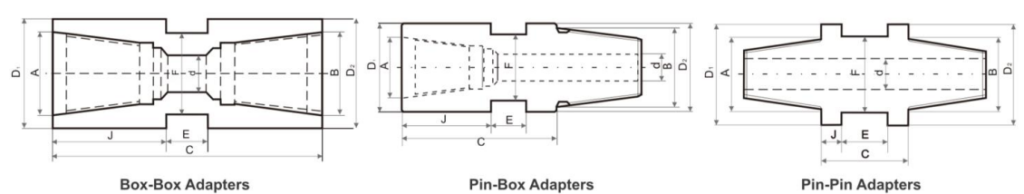

General Down the Hole DTH Drill Pipes Specifications

Click or tap to view

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Wrench Flat (mm)	Wrench Flat (inch)	Weight
Imperial (inch)	Metric	Imperial (inch)	Metric	Imperial (ft)	Metric	Box Thread	Pin Thread	Wrench Flat (mm)	Wrench Flat (inch)	(lb)	(kg)
3	76	5/32	4	3′ 3 3/8″	1000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	26	12
3	76	1/4	6.3	3′ 3 3/8″	1000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	37	17
3	76	11/32	8.8	3′ 3 3/8″	1000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	37	17
3	76	5/32	4	4′ 11″	1500	RD50-6	RD50-6	A/F65	2 1/2	35	16
3	76	5/32	4	4′ 11″	1500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	35	16
3	76	1/4	6.3	4′ 11″	1500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	51	23
3	76	11/32	8.8	4′ 11″	1500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	53	24
3	76	11/32	8.8	5′ 11″	1800	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	62	28
3	76	5/32	4	6′ 6 3/4″	2000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	42	19
3	76	1/4	6.3	6′ 6 3/4″	2000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	62	28
3	76	11/32	8.8	6′ 6 3/4″	2000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	71	32
3	76	11/32	8.8	6′ 6 3/4″	2000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	71	32
3	76	5/32	4	9′ 10 1/8″	3000	RD50-6	RD50-6	A/F65	2 1/2	53	24
3	76	1/4	6.3	9′ 10 1/8″	3000	RD50-6	RD50-6	A/F65	2 1/2	86	39
3	76	1/4	6.3	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	86	39
3	76	5/32	4	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	55	25
3	76	5/32	4	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	55	25
3	76	1/4	6.3	12′ 2 29/64″	3720	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	97	44
3	76	1/4	6.3	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	108	49
3	76	5/32	4	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	68	31
3	76	1/4	6.3	14′ 9 11/64″	4500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	115	52
3	76	1/4	6.3	16′ 4 27/32″	5000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	134	61
3	76	1/4	6.3	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	159	72
3	76	1/4	6.3	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	154	70
3 1/2	89	5/32	4	3′ 3 3/8″	1000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	29	13
3 1/2	89	1/4	6.3	3′ 3 3/8″	1000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	37	17
3 1/2	89	1/4	6.3	3′ 3 3/8″	1000	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	37	17
3 1/2	89	5/32	4	4′ 11″	1500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	40	18
3 1/2	89	5/32	4	4′ 11″	1500	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	40	18
3 1/2	89	1/4	6.3	4′ 11″	1500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	53	24
3 1/2	89	1/4	6.3	4′ 11″	1500	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	53	24
3 1/2	89	1/4	6.3	5′ 6 59/64″	1700	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	62	28
3 1/2	89	5/32	4	5′ 10 55/64″	1800	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	44	20
3 1/2	89	1/4	6.3	5′ 10 55/64″	1800	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	64	29
3 1/2	89	11/32	8.8	5′ 10 55/64″	1800	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	73	33
3 1/2	89	11/32	8.8	6.40	1950	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	75	34
3 1/2	89	5/32	4	6′ 6 3/4″	2000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	49	22
3 1/2	89	5/32	4	6′ 6 3/4″	2000	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	49	22
3 1/2	89	1/4	6.3	6′ 6 3/4″	2000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	66	30
3 1/2	89	1/4	6.3	6′ 6 3/4″	2000	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	66	30
3 1/2	89	11/32	8.8	6′ 6 3/4″	2000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	84	38
3 1/2	89	1/4	6.3	6′ 10 43/64″	2100	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	68	31
3 1/2	89	5/32	4	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	62	28
3 1/2	89	5/32	4	9′ 10 1/8″	3000	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	62	28
3 1/2	89	1/4	6.3	9′ 10 1/8″	3000	RD70-4	RD70-4	A/F65	2 1/2	95	43
3 1/2	89	1/4	6.3	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	95	43
3 1/2	89	1/4	6.3	9′ 10 1/8″	3000	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	95	43
3 1/2	89	11/32	8.8	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	115	52
3 1/2	89	1/4	6.3	9′ 10 1/8″	3000	2 3/8″ IF	2 3/8″ IF	A/F65	2 1/2	95	43
3 1/2	89	5/32	4	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	66	30
3 1/2	89	1/4	6.3	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	123	56
3 1/2	89	5/32	4	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	86	39
3 1/2	89	1/4	6.3	14′ 9 11/64″	4500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	163	74
3 1/2	89	5/32	4	14′ 9 11/64″	4500	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	82	37
3 1/2	89	1/4	6.3	16′ 4 27/32″	5000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	152	69
3 1/2	89	1/4	6.3	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	179	81
3 1/2	89	11/32	8.8	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	A/F65	2 1/2	218	99
4 1/2	102	11/32	8.8	3′ 3 3/8″	1000	2 3/8″ IF	2 3/8″ IF	A/F75	3	61	28
4 1/2	102	1/4	6.3	5′ 6 59/64″	1700	2 3/8″ IF	2 3/8″ IF	A/F75	3	79	36
4 1/2	102	1/4	6.3	9′ 10 1/8″	3000	2 7/8″ API	2 7/8″ API	A/F75	3	121	55
4 1/2	102	11/32	8.8	9′ 10 1/8″	3000	2 3/8″ API	2 3/8″ API	A/F75	3	206	94
4 1/2	102	11/32	8.8	9′ 10 1/8″	3000	2 3/8″ IF	2 3/8″ IF	A/F75	3	206	94
4 1/2	102	1/4	6.3	13′ 1 1/2″	4000	2 7/8″ API	2 7/8″ API	A/F75	3	154	70
4 1/2	102	1/4	6.3	13′ 1 1/2″	4000	3 1/2″ API	3 1/2″ API	A/F75	3	154	70
4 1/2	102	1/4	6.3	16′ 4 27/32″	5000	3 1/2″ API	3 1/2″ API	A/F65	3	187	85
4 1/2	102	1/4	6.3	16′ 4 27/32″	5000	2 7/8″ API	2 7/8″ API	A/F75	3	187	85
4 1/2	102	1/4	6.3	19′ 8 7/32″	6000	2 7/8″ API	2 7/8″ API	A/F75	3	220	100
4 1/2	102	1/4	6.3	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	A/F75	3	220	100
4 1/2	102	1/4	6.3	19′ 8 7/32″	6000	2 7/8″ IF	2 7/8″ IF	A/F75	3	220	100
4 1/2	114	1/2	12.7	4′	1219	3 1/2″ API	3 1/2″ API	A/F75	3	105	48
4 1/2	114	1/2	12.7	4′	1219	3 1/2″ API	3″ BECO	A/F75	3	105	48
4 1/2	114	1/2	12.7	7′	2133	3 1/2″ API	3 1/2″ API	A/F75	3	135	61
4 1/2	114	43/64	17	19′ 8 7/32″	6000	3″ BECO	3″ BECO	A/F90	3 1/2	585	266
4 1/2	114	1/4	6.3	3′ 3 3/8″	1000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	57	26
4 1/2	114	11/32	8.8	3′ 3 3/8″	1000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	68	31
4 1/2	114	1/4	6.3	4′ 11″	1500	2 3/8″ IF	2 7/8″ IF	A/F95	3 3/4	77	35
4 1/2	114	1/4	6.3	4′ 11″	1500	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	77	35
4 1/2	114	11/32	8.8	4′ 11″	1500	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	93	42
4 1/2	114	1/4	6.3	4′ 11″	1500	2 3/8″ API	2 3/8″ API	A/F95	3 3/4	77	35
4 1/2	114	1/4	6.3	6′ 6 3/4″	2000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	95	43
4 1/2	114	1/4	6.3	6′ 6 3/4″	2000	3 1/2″ IF	3 1/2″ IF	A/F95	3 3/4	95	43
4 1/2	114	11/32	8.8	6′ 6 3/4″	2000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	119	54
4 1/2	114	1/4	6.3	9′ 10 1/8″	3000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	132	60
4 1/2	114	1/4	6.3	9′ 10 1/8″	3000	3 1/2″ IF	3 1/2″ IF	A/F95	3 3/4	132	60
4 1/2	114	11/32	8.8	9′ 10 1/8″	3000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	170	77
4 1/2	114	11/32	8.8	13′ 1 1/2″	4000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	220	100
4 1/2	114	1/4	6.3	13′ 1 1/2″	4000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	168	76
4 1/2	114	1/4	6.3	14′ 9 11/64″	4500	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	211	96
4 1/2	114	11/32	8.8	14′ 9 11/64″	4500	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	245	111
4 1/2	114	1/4	6.3	16′ 4 27/32″	5000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	205	93
4 1/2	114	1/4	6.3	16′ 4 27/32″	5000	3 1/2″ IF	3 1/2″ IF	A/F95	3 3/4	207	94
4 1/2	114	11/32	8.8	16′ 4 27/32″	5000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	269	122
4 1/2	114	1/4	6.3	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	243	110
4 1/2	114	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	300	136
4 1/2	114	1/2	12.7	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	440	200
4 1/2	114	11/32	8.8	19′ 8 7/32″	6000	2 7/8″ API	2 7/8″ API	A/F95	3 3/4	320	145
4 1/2	114	11/32	8.8	19′ 8 7/32″	6000	NC35	NC35	A/F95	3 3/4	320	145
5	127	11/32	8.8	6′ 6 3/4″	2000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	141	64
5	127	1/4	6.3	6′ 6 3/4″	2000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	115	52
5	127	1/4	6.3	9′ 10 1/8″	3000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	134	61
5	127	11/32	8.8	9′ 10 1/8″	3000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	198	90
5	127	1/4	6.3	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	A/F95	3 3/4	280	127
5 1/2	140	11/32	8.8	3′ 3 3/8″	1000	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	99	45
5 1/2	140	1/2	12.7	3′ 3 3/8″	1000	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	125	57
5 1/2	140	11/32	8.8	4′ 11″	1500	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	106	48
5 1/2	140	11/32	8.8	4′ 11″	1500	3 1/2″ API	3 1/2″ API	A/F120	4 3/4	106	48
5 1/2	140	1/4	6.3	4′ 11″	1500	3 1/2″ API	3 1/2″ API	A/F120	4 3/4	95	43
5 1/2	140	11/32	8.8	5′	1524	3 1/2″ IF	3 1/2″ IF	A/F120	4 3/4	106	48
5 1/2	140	11/32	8.8	6′ 6 3/4″	2000	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	168	76
5 1/2	140	11/32	8.8	6′ 6 3/4″	2000	3 1/2″ API	3 1/2″ API	A/F120	4 3/4	168	76
5 1/2	140	1/2	12.7	6′ 6 3/4″	2000	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	250	114
5 1/2	140	11/32	8.8	9′ 10 1/8″	3000	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	229	104
5 1/2	140	11/32	8.8	9′ 10 1/8″	3000	3 1/2″ API	3 1/2″ API	A/F120	4 3/4	229	104
5 1/2	140	11/32	8.8	13′ 1 1/2″	4000	3 1/2″ API	3 1/2″ API	A/F120	4 3/4	289	131
5 1/2	140	11/32	8.8	16′ 4 27/32″	5000	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	353	160
5 1/2	140	11/32	8.8	19′ 8 7/32″	6000	4 1/2″ API	4 1/2″ API	A/F120	4 3/4	412	187
5 1/2	140	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	A/F120	4 3/4	412	187

Rig Specific Down the Hole DTH Drill Pipes Specifications

Driltech Gator

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	9 1/2	2896	2 3/8″ API	2 3/8″ API	Driltech/ GATOR	92	42
3	76	1/4	6.3	13	3962	2 3/8″ API	2 3/8″ API	Driltech/ GATOR	119	54
3	76	1/2	12.7	25	7650	2 3/8″ API	2 3/8″ API	Driltech/ GATOR	339	154
3 1/2	89	11/32	8.8	9 1/2	2896	2 3/8″ API	2 3/8″ API	Driltech/ GATOR	139	63
3 1/2	89	11/32	8.8	9 1/2	2896	2 7/8″ API	2 7/8″ API	Driltech/ GATOR	136	62
3 1/2	89	11/32	8.8	13	3962	2 7/8″ API	2 7/8″ API	Driltech/ GATOR	174	79
3 1/2	89	11/32	8.8	13	3962	2 3/8″ API	2 3/8″ API	Driltech/ GATOR	176	80
3 1/2	89	11/32	8.8	20	6096	2 3/8″IF	2 3/8″IF	Driltech/ GATOR	238	108
3 1/2	89	1/2	12.7	25	7650	2 3/8″ API	2 3/8″ API	Driltech/ GATOR	422	192
3 1/2	89	11/32	8.8	9 1/2	2896	2 7/8″ API	2 7/8″ API	Driltech/ GATOR	176	80
4	102	11/32	8.8	13	3962	2 3/8″IF	2 3/8″IF	Driltech/ GATOR	218	99
4	102	11/32	8.8	13	3962	2 7/8″ API	2 7/8″ API	Driltech/ GATOR	222	101
4 1/2	114	11/32	8.8	9 1/2	2896	3 1/2″ API	3 1/2″ API	Driltech/ GATOR	225	102
4 1/2	114	11/32	8.8	13	3962	3 1/2″ API	3 1/2″ API	Driltech/ GATOR	280	127
4 1/2	114	1/2	12.7	25	7650	3″ BECO	3″ BECO	Driltech/ GATOR	591	268

Driltech T25KW D25 D40

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	11/32	8.8	19′ 8 5/8″	6010	2 3/8″IF	2 3/8″IF	Driltech T25KW/D25/40	242	110
3 1/2	89	11/32	8.8	20	6096	2 3/8″IF	2 3/8″IF	Driltech T25KW/D25/40	242	110
3 1/2	89	1/2	12.7	25	7620	2 3/8″ IF	2 3/8″ IF	Driltech T25KW/D25/40	411	187
3 1/2	89	1/2	12.7	30	9144	2 3/8″ IF	2 3/8″ IF	Driltech T25KW/D25/40	491	223
4	102	11/32	8.8	19′ 8 5/8″	6010	2 3/8″IF	2 3/8″IF	Driltech T25KW/D25/40	306	139
4	102	11/32	8.8	25	7620	2 7/8″ API	2 7/8″ API	Driltech T25KW/D25/40	383	174
4	102	1/2	12.7	25	7620	2 7/8″ API	2 7/8″ API	Driltech T25KW/D25/40	488	222
4	102	11/32	8.8	30	9144	2 3/8″IF	2 3/8″IF	Driltech T25KW/D25/40	444	202
4	102	1/2	12.7	30	9144	2 7/8″ API	2 7/8″ API	Driltech T25KW/D25/40	581	264
4	102	11/32	8.8	30	9144	2 7/8″ API	2 7/8″ API	Driltech T25KW/D25/40	451	205
4	102	1/2	12.7	30	9144	2 7/8″ API	2 7/8″ API	Driltech T25KW/D25/40	581	264
4 1/2	114	11/32	8.8	19′ 8 5/8″	6000	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	343	156
4 1/2	114	11/32	8.8	19′ 8 5/8″	6010	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	345	157
4 1/2	114	11/32	8.8	20	6096	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	354	161
4 1/2	114	11/32	8.8	20	6096	2 7/8″ IF	2 7/8″ IF	Driltech T25KW/D25/40	345	157
4 1/2	114	1/2	12.7	21′ 6″	6553	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	488	222
4 1/2	114	11/32	8.8	25	7620	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	431	196
4 1/2	114	11/32	8.8	25	7620	2 7/8″ IF	2 7/8″ IF	Driltech T25KW/D25/40	431	196
4 1/2	114	1/2	12.7	25	7620	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	563	256
4 1/2	114	3/4	19	25	7620	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	796	362
4 1/2	114	11/32	8.8	30	9144	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	506	230
4 1/2	114	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	669	304
4 1/2	114	11/32	8.8	30	9144	3″ BECO	3″ BECO	Driltech T25KW/D25/40	515	234
4 1/2	114	11/32	8.8	30	9144	2 7/8″ IF	2 7/8″ IF	Driltech T25KW/D25/40	506	230
4 1/2	114	1/2	12.7	30	9144	3″ BECO	3″ BECO	Driltech T25KW/D25/40	671	305
4 1/2	114	3/4	19	30	9144	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	953	433
5	127	1/2	12.7	25	7620	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	693	315
5	127	3/4	19	25	7620	3 1/2″ BECO	3 1/2″ BECO	Driltech T25KW/D25/40	928	422
5	127	11/32	8.8	25	7620	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	499	227
5	127	1/2	12.7	25	7620	3 1/2″ BECO	3 1/2″ BECO	Driltech T25KW/D25/40	646.8	294
5	127	3/4	19	25	7620	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	920	418
5	127	3/4	19	30	9144	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	1100	500
5	127	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	774	352
5	127	11/32	8.8	30	9144	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	585	266
5	127	1/2	12.7	30	9144	3 1/2″ BECO	3 1/2″ BECO	Driltech T25KW/D25/40	763	347
5	127	3/4	19	30	9144	3 1/2″ BECO	3 1/2″ BECO	Driltech T25KW/D25/40	1104.4	502
5 1/2	140	3/4	19	25	7620	3 1/2″ BECO	3 1/2″ BECO	Driltech T25KW/D25/40	1045	475
5 1/2	140	3/4	19	30	9144	3 1/2″ BECO	3 1/2″ BECO	Driltech T25KW/D25/40	1243	565
5 1/2	140	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	Driltech T25KW/D25/40	847	385
5 1/2	140	1/2	12.7	30	9144	3 1/2″ BECO	3 1/2″ BECO	Driltech T25KW/D25/40	871.2	396
5 1/2	140	1/2	12.7	30	9144	4″ FH	4″ FH	Driltech T25KW/D25/40	862.4	392

DI Titon (BPI)

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	9′ 10″	3000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	92	42
3	76	5/32	4	9′ 10″	3000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	73	33
3	76	5/32	4	9′ 10″	3000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	68	31
3	76	1/4	6.3	12′ 2 3/8″	3720	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	99	45
3	76	1/4	6.3	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	117	53
3	76	1/4	6.3	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	101	46
3	76	11/32	8.8	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	176	80
3	76	1/4	6.3	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	141	64
3	76	1/4	6.3	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	128	58
3	76	1/4	6.3	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	165	75
3	76	11/32	8.8	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	209	95
3 1/2	89	5/32	4	9′ 10″	3000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	99	45
3 1/2	89	1/4	6.3	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	150	68
3 1/2	89	11/32	8.8	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	174	79
3 1/2	89	5/32	4	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	119	54
3 1/2	89	5/32	4	13′ 1 1/2″	4000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	101	46
3 1/2	89	11/32	8.8	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	209	95
3 1/2	89	1/4	6.3	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	180	82
3 1/2	89	1/4	6.3	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	165	75
3 1/2	89	1/4	6.3	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	207	94
3 1/2	89	11/32	8.8	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	240	109
3 1/2	89	11/32	8.8	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	242	110
3 1/2	89	1/4	6.3	24′ 7 9/32″	7500	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	249	113
3 1/2	89	11/32	8.8	24′ 7 9/32″	7500	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	297	135
4	102	1/4	6.3	13′ 1 1/2″	4000	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	183	83
4	102	11/32	8.8	13′ 1 1/2″	4000	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	224	102
4	102	11/32	8.8	16′ 4 5/8″	5000	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	269	122
4	102	1/4	6.3	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	DI/TITON/BPI	187	85
4	102	1/4	6.3	16′ 4 5/8″	5000	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	216	98
4	102	11/32	8.8	19′ 8 7/32″	6000	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	312	142
4	102	1/4	6.3	19′ 8 7/32″	6000	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	246	112
4	102	1/4	6.3	24′ 7 9/32″	7500	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	295	134
4	102	11/32	8.8	24′ 7 9/32″	7500	2 7/8″ API	2 7/8″ API	DI/TITON/BPI	378	172
4 1/2	114	1/4	6.3	13′ 1 1/2″	4000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	213	97
4 1/2	114	11/32	8.8	13′ 1 1/2″	4000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	260	118
4 1/2	114	1/4	6.3	13′ 1 1/2″	4000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	167	76
4 1/2	114	11/32	8.8	16′ 4 5/8″	5000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	310	141
4 1/2	114	1/4	6.3	16′ 4 5/8″	5000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	253	115
4 1/2	114	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	359	163
4 1/2	114	1/4	6.3	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	288	131
4 1/2	114	1/4	6.3	24′ 7 9/32″	7500	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	343	156
4 1/2	114	11/32	8.8	24′ 7 9/32″	7500	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	436	198
5	127	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	416	189
5	127	1/4	6.3	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	339	154
5	127	1/4	6.3	24′ 7 9/32″	7500	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	398	181
5	127	11/32	8.8	24′ 7 9/32″	7500	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	502	228
5	127	11/32	8.8	24′ 7 9/32″	7500	3 1/2″ BECO	3 1/2″ BECO	DI/TITON/BPI	502	228
5	127	1/2	12.7	24′ 7 9/32″	7500	3 1/2″ BECO	3 1/2″ BECO	DI/TITON/BPI	647	294
5 1/2	140	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	DI/TITON/BPI	365	166
5 1/2	140	11/32	8.8	24′ 7 9/32″	7500	4 1/2″ API	4 1/2″ API	DI/TITON/BPI	561	255
5 1/2	140	11/32	8.8	24′ 7 9/32″	7500	3 1/2″ BECO	3 1/2″ BECO	DI/TITON/BPI	561	255
5 1/2	140	1/2	12.7	24′ 7 9/32″	7500	3 1/2″ BECO	3 1/2″ BECO	DI/TITON/BPI	748	340

'S' Brand Cubex Spline

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	6	1828	CUBEX #19	CUBEX #19	Sandvik Cubex/UG/V-30/QXR (Splines)	53	24
3	76	1/4	6.3	10	3048	CUBEX #19	CUBEX #19	Sandvik Cubex/UG/V-30/QXR (Splines)	81	37
3 7/64	79	1/4	6.3	4	1219	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	37	17
3 7/64	79	1/4	6.3	5	1524	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	46	21
3 7/64	79	1/4	6.3	6	1829	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	53	24
3 1/2	89	1/4	6.3	4	1219	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	46	21
3 1/2	89	1/4	6.3	4	1219	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	46	21
3 1/2	89	1/4	6.3	5	1524	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	55	25
3 1/2	89	1/4	6.3	5	1524	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	53	24
3 1/2	89	1/4	6.3	6	1829	CUBEX #21	CUBEX #21	Sandvik Cubex/UG/V-30/QXR (Splines)	64	29
3 1/2	89	1/4	6.3	6	1829	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	62	28
4	102	1/4	6.3	4	1219	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	60	27
4	102	1/4	6.3	5	1524	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	68	31
4	102	1/4	6.3	6	1828	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	79	36
4	102	1/2	12.7	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	311	141
4	102	11/32	8.8	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	287	130
4	102	1/2	12.7	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/UG/V-30/QXR (Splines)	384	174
4 1/2	114	1/4	6.3	3′ 11″	1196	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	68	31
4 1/2	114	1/4	6.3	4	1219	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	68	31
4 1/2	114	1/4	6.3	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	79	36
4 1/2	114	1/4	6.3	6	1829	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	90	41
4 1/2	114	1/2	12.7	16	4877	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	359	163
4 1/2	114	1/2	12.7	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	445	202
4 1/2	114	11/32	8.8	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	344	156
5	127	1/2	12.7	4	1219	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	112	51
5	127	1/4	6.3	4	1219	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	93	42
5	127	1/4	6.3	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	106	48
5	127	11/32	8.8	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	123	56
5	127	25/64	10	5	1524	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	132	60
5	127	1/4	6.3	6	1829	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	117	53
5	127	11/32	8.8	6	1829	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	141	64
5	127	1/2	12.7	16	4877	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	410	186
5	127	1/2	12.7	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/UG/V-30/QXR (Splines)	505	229

'S' Brand Cubex QXR (No Spline)

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	3/4	19	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	370	168
3 1/2	89	3/4	19	16	4877	2 3/8″ API	2 3/8″ API	Sandvik Cubex/QXR (TJBO/No Splines)	367	167
3 1/2	89	11/32	8.8	16′ 4 5/8″	5000	2 3/8″ API	2 3/8″ API	Sandvik Cubex/QXR (TJBO/No Splines)	198	90
3 1/2	89	11/32	8.8	19′ 8 7/32″	6000	2 3/8″ API	2 3/8″ API	Sandvik Cubex/QXR (TJBO/No Splines)	233	106
3 1/2	89	1/2	12.7	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	330	150
3 1/2	89	1/2	12.7	20	6096	2 3/8″ API	2 3/8″ API	Sandvik Cubex/QXR (TJBO/No Splines)	330	150
3 1/2	89	11/32	8.8	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	235	107
3 1/2	89	11/32	8.8	20	6096	2 3/8″ API	2 3/8″ API	Sandvik Cubex/QXR (TJBO/No Splines)	235	107
4	102	3/4	19	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	444	202
4	102	1/2	12.7	16	4877	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	316	144
4	102	11/32	8.8	16′ 4 5/8″	5000	2 7/8″ API	2 7/8″ API	Sandvik Cubex/QXR (TJBO/No Splines)	253	115
4	102	11/32	8.8	19′ 8 7/32″	6000	2 7/8″ API	2 7/8″ API	Sandvik Cubex/QXR (TJBO/No Splines)	297	135
4	102	11/32	8.8	20	6096	CUBEX #24	CUBEX #25	Sandvik Cubex/QXR (TJBO/No Splines)	301	137
4	102	1/2	12.7	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	392	178
4	102	1/4	6.3	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	235	107
4	102	3/4	19	20	6096	CUBEX #24	CUBEX #24	Sandvik Cubex/QXR (TJBO/No Splines)	552	251
4 1/2	114	3/4	19	16	4877	3 1/2″ API	3 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	515	234
4 1/2	114	11/32	8.8	16′ 4 5/8″	5000	3 1/2″ API	3 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	293	133
4 1/2	114	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	343	156
4 1/2	114	1/2	12.7	20	6096	3 1/2″ API	3 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	453	206
5	127	1/2	12.7	16	4877	3 1/2″ BECO	3 1/2″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	436	198
5	127	3/4	19	16	4877	3 1/2″ BECO	3 1/2″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	627	285
5	127	11/32	8.8	16	4877	CUBEX #28	CUBEX #28	Sandvik Cubex/QXR (TJBO/No Splines)	332	151
5	127	1/2	12.7	16	4877	3 1/2″ API	3 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	438	199
5	127	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ BECO	3 1/2″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	394	179
5	127	1/2	12.7	20	6096	3 1/2″ BECO	3 1/2″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	521	237
5	127	11/32	8.8	20	6096	CUBEX #28	CUBEX #28	Sandvik Cubex/QXR (TJBO/No Splines)	400	182
5	127	1/2	12.7	20	6096	3 1/2″ API	3 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	524	238
5	127	3/4	19	20	6096	3 1/2″ API	3 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	629	286
5 1/2	140	1/2	12.7	15′ 9″	4800	4 1/2″ API	4 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	471	214
5 1/2	140	1/2	12.7	15′ 9″	4800	3 1/2″ BECO	3 1/2″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	480	218
5 1/2	140	1/2	12.7	19′ 8 7/32″	6000	3 1/2″ BECO	3 1/2″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	583	265
5 1/2	140	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ BECO	3 1/2″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	449	204
5 1/2	140	11/32	8.8	19′ 8 7/32″	6000	4″ BECO	4″ BECO	Sandvik Cubex/QXR (TJBO/No Splines)	449	204
5 1/2	140	1/2	12.7	19′ 8 7/32″	6000	4 1/2″ API	4 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	574	261
5 1/2	140	11/32	8.8	19′ 8 7/32″	6000	4 1/2″ API	4 1/2″ API	Sandvik Cubex/QXR (TJBO/No Splines)	446.6	203

CM695 760 780

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3	76	1/4	6.3	8′ 10 19/64″	2700	2″Z	2″Z	Atlas Copco CM 695 760 780	73	33
3	76	11/32	8.8	9′ 6 11/64″	2900	2 3/8″API	2″Z	Atlas Copco CM 695 760 780	101	46
3	76	1/4	6.3	13′ 1 1/2″	4000	2″ Z	2″ Z	Atlas Copco CM 695 760 780	99	45
3	76	0.5	12.7	13′ 1 1/2″	4000	2″Z	2″Z	Atlas Copco CM 695 760 780	176	80
3	76	11/32	8.8	13′ 1 1/2″	4000	2″Z	2″Z	Atlas Copco CM 695 760 780	134	61
3	76	11/32	8.8	15′ 1 7/64″	4600	2 3/8″API	2″Z	Atlas Copco CM 695 760 780	156	71
3	76	1/4	6.3	16′ 4 5/8″	5000	2″Z	2″Z	Atlas Copco CM 695 760 780	123	56
3 1/2	89	11/32	8.8	7′ 10 1/2″	2400	3 1/2″ API	2 1/2″Z	Atlas Copco CM 695 760 780	108	49
3 1/2	89	11/32	8.8	8′ 10 19/64″	2700	2 3/8″ API	2 1/2″ Z	Atlas Copco CM 695 760 780	132	60
3 1/2	89	11/32	8.8	8′ 10 19/64″	2700	2 3/8″API	2 1/2″Z	Atlas Copco CM 695 760 780	108	49
3 1/2	89	1/4	6.3	13′ 1 1/2″	4000	2 1/2″Z	2 1/2″Z	Atlas Copco CM 695 760 780	125	57
3 1/2	89	11/32	8.8	14′ 5 7/32″	4400	3 1/2″ API	2 1/2″Z	Atlas Copco CM 695 760 780	178	81
3 1/2	89	11/32	8.8	15′ 1 7/64″	4600	2 3/8″ API	2 1/2″ Z	Atlas Copco CM 695 760 780	176	80
3 1/2	89	1/4	6.3	16′ 4 5/8″	5000	2 1/2″ Z	2 1/2″ Z	Atlas Copco CM 695 760 780	154	70
4	102	1/4	6.3	7′ 11 5/8″	2435	2 1/2″ Z	2 1/2″ Z	Atlas Copco CM 695 760 780	97	44
4	102	11/32	8.8	8′ 10 19/64″	2700	3 1/2″ API	2 1/2″ Z	Atlas Copco CM 695 760 780	143	65
4	102	1/4	6.3	13′ 1 1/2″	4000	2 1/2″ Z	2 1/2″ Z	Atlas Copco CM 695 760 780	145	66
4	102	1/2	12.7	13′ 1 1/2″	4000	3 1/2″ API	2 1/2″Z	Atlas Copco CM 695 760 780	260	118
4	102	11/32	8.8	14′ 5 7/32″	4400	3 1/2″ API	2 1/2″ Z	Atlas Copco CM 695 760 780	218	99
4	102	1/4	6.3	16′ 4 5/8″	5000	2 1/2″ Z	2 1/2″ Z	Atlas Copco CM 695 760 780	178	81

DM30 45 50 T4 RD20

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
4	102	11/32	8.8	25	7620	2 7/8″ API	2 7/8″ API	Atlas Copco T4/DM30/DM45	370	168
4	102	3/4	19	26′ 6″	8077	2 7/8″ API	2 7/8″ API	Atlas Copco T4/DM30/DM45	662	301
4	102	11/32	8.8	30	9144	2 7/8″ API	2 7/8″ API	Atlas Copco T4/DM30/DM45	438	199
4	102	3/4	19	30	9144	2 7/8″ API	2 7/8″ API	Atlas Copco T4/DM30/DM45	744	338
4 1/2	114	11/32	8.8	20	6096	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	339	154
4 1/2	114	11/32	8.8	20	6096	2 7/8″ IF	2 7/8″ IF	Atlas Copco T4/DM30/DM45	332	151
4 1/2	114	1/2	12.7	21′ 6″	6553	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	482	219
4 1/2	114	5/8	16	21′ 6″	6553	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	581	264
4 1/2	114	11/32	8.8	25	7620	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	411	187
4 1/2	114	1/2	12.7	25	7620	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	550	250
4 1/2	114	11/32	8.8	25	7620	2 7/8″ IF	2 7/8″ IF	Atlas Copco T4/DM30/DM45	409	186
4 1/2	114	3/4	19	25	7620	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	792	360
4 1/2	114	3/4	19	26′ 6″	8077	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	838	381
4 1/2	114	3/4	19	26′ 6″	8077	3″ BECO	3″ BECO	Atlas Copco T4/DM30/DM45	838	381
4 1/2	114	5/8	16	28	8534	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	750	341
4 1/2	114	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	656	298
4 1/2	114	3/4	19	30	9144	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	942	428
4 1/2	114	11/32	8.8	30	9144	2 7/8″ IF	2 7/8″ IF	Atlas Copco T4/DM30/DM45	486	221
4 1/2	114	11/32	8.8	30	9144	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	491	223
4 1/2	114	11/32	8.8	30	9144	3″ BECO	3″ BECO	Atlas Copco T4/DM30/DM45	495	225
4 1/2	114	1/2	12.7	30	9144	3″ BECO	3″ BECO	Atlas Copco T4/DM30/DM45	656	298
4 1/2	114	3/4	19	30	9144	3″ BECO	3″ BECO	Atlas Copco T4/DM30/DM45	942	428
4 1/2	114	1/2	12.7	35	10668	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	761	346
4 1/2	114	3/4	19	35	10668	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	1098	499
5	127	1/2	12.7	21′ 6″	6553	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	548	249
5	127	3/4	19	21′ 6″	6553	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	805	366
5	127	3/4	19	21′ 6″	6553	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	801	364
5	127	11/32	8.8	21′ 6″	6553	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	418	190
5	127	1/2	12.7	21′ 6″	6553	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	550	250
5	127	1/2	12.7	25	7620	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	620	282
5	127	3/4	19	25	7620	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	911	414
5	127	11/32	8.8	25	7620	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	471	214
5	127	1/2	12.7	25	7620	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	629	286
5	127	3/4	19	25	7620	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	920	418
5	127	1/2	12.7	26′ 6″	8077	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	667	303
5	127	3/4	19	26′ 6″	8077	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	976.8	444
5	127	1/2	12.7	26′ 6″	8077	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	668.8	304
5	127	3/4	19	26′ 6″	8077	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	981.2	446
5	127	11/32	8.8	30	9144	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	556.6	253
5	127	3/4	19	30	9144	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	1086.8	494
5	127	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	739.2	336
5	127	11/32	8.8	30	9144	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	563.2	256
5	127	3/4	19	30	9144	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1106.6	503
5	127	1/2	12.7	30	9144	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	748	340
5	127	3/4	19	30	9144	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1097.8	499
5	127	0.500	12.7	35	10668	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	855.8	389
5	127	3/4	19	35	10668	3 1/2″ API	3 1/2″ API	Atlas Copco T4/DM30/DM45	1265	575
5	127	1/2	12.7	35	10668	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	866.8	394
5	127	3/4	19	35	10668	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1273.8	579
5 1/2	140	3/4	19	20′ 8″	6299	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	875.6	398
5 1/2	140	1/2	12.7	20′ 8″	6299	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	609.4	277
5 1/2	140	1/2	12.7	20′ 8″	6299	4″FH	4″FH	Atlas Copco T4/DM30/DM45	600.6	273
5 1/2	140	1	25.4	20′ 8″	6300	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1020.8	464
5 1/2	140	3/4	19	25	7620	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1038.4	472
5 1/2	140	1/2	12.7	25	7620	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	715	325
5 1/2	140	1/2	12.7	25	7620	4″FH	4″FH	Atlas Copco T4/DM30/DM45	701.8	319
5 1/2	140	1	25.4	25	7620	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1218.8	554
5 1/2	140	1/2	12.7	25′ 8″	7823	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	741.4	337
5 1/2	140	3/4	19	26′ 6″	8077	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1097.8	499
5 1/2	140	3/4	19	30	9144	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1236.4	562
5 1/2	140	1/2	12.7	30	9144	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	855.8	389
5 1/2	140	1	25.4	30	9144	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1454.2	661
5 1/2	140	1/2	12.7	30	9144	4″FH	4″FH	Atlas Copco T4/DM30/DM45	844.8	384
5 1/2	140	1/2	12.7	30	9144	4″ BECO	4″ BECO	Atlas Copco T4/DM30/DM45	855.8	389
5 1/2	140	1/2	12.7	35	10668	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	976.8	444
5 1/2	140	3/4	19	35	10668	3 1/2″ BECO	3 1/2″ BECO	Atlas Copco T4/DM30/DM45	1434.4	652
5 1/2	140	1/2	12.7	35	10668	4″ BECO	4″ BECO	Atlas Copco T4/DM30/DM45	976.8	444

DM25

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	1/2	12.7	26′ 6″	8077	2 3/8″API	2 3/8″API	AC DM25	439	199
3 1/2	89	1/2	12.7	30	9144	2 3/8″API	2 3/8″API	AC DM25	494	224
4	102	11/32	8.8	21	6400	2 7/8″ API	2 7/8″ API	AC DM25	317	144
4	102	11/32	8.8	25	7620	2 7/8″ API	2 7/8″ API	AC DM25	375	170

Pit Viper

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
4 1/2	114	3/4	19	40	12192	3″ BECO	3″ BECO	PIT-VIPER	1278	581
4 1/2	114	3/4	19	37′ 4″	11378	3″ BECO	3″ BECO	PIT-VIPER	1195	543
4 1/2	114	1/2	12.7	35	10668	3 1/2″ API	3 1/2″ API	PIT-VIPER	772	351
4 1/2	114	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	PIT-VIPER	669	304
4 1/2	127	1/2	12.7	30	9144	3 1/2″ BECO	3 1/2″ BECO	PIT-VIPER	757	344

ROC F6 L6 L8

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
4 1/2	114	3/4	19	40	12192	3″ BECO	3″ BECO	PIT-VIPER	1278	581
4 1/2	114	3/4	19	37′ 4″	11378	3″ BECO	3″ BECO	PIT-VIPER	1195	543
4 1/2	114	1/2	12.7	35	10668	3 1/2″ API	3 1/2″ API	PIT-VIPER	772	351
4 1/2	114	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	PIT-VIPER	669	304
4 1/2	127	1/2	12.7	30	9144	3 1/2″ BECO	3 1/2″ BECO	PIT-VIPER	757	344

SKS SKFX MD

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
4	102	3/4	19	35	10668	3 1/8″ DIBH	3 1/8″ DIBH	Cat/Reedrill/SKS/SKFX/MD	953	433
4 1/2	114	1/2	12.7	30	9144	3″ BECO	3″ BECO	Cat/Reedrill/SKS/SKFX/MD	684	311
4 1/2	114	1/2	12.7	30	9144	3 1/2″ API	3 1/2″ API	Cat/Reedrill/SKS/SKFX/MD	682	310
4 1/2	114	3/4	19	30	9144	3 1/2″ API	3 1/2″ API	Cat/Reedrill/SKS/SKFX/MD	957	435
4 1/2	114	1/2	12.7	30	9144	3 1/2″ DIBH	3 1/2″ DIBH	Cat/Reedrill/SKS/SKFX/MD	680	309
4 1/2	114	1/2	12.7	35	10668	3″ BECO	3″ BECO	Cat/Reedrill/SKS/SKFX/MD	790	359
4 1/2	114	1/2	12.7	35	10668	2 7/8″ IF	2 7/8″ IF	Cat/Reedrill/SKS/SKFX/MD	785	357
4 1/2	114	1/2	12.7	35	10668	3 1/2″ DIBH	3 1/2″ DIBH	Cat/Reedrill/SKS/SKFX/MD	785	357
4 1/2	114	1/2	12.7	35	10668	3 1/2″ DIBH	3 1/2″ DIBH	Cat/Reedrill/SKS/SKFX/MD	785	357
5	127	3/4	19	25	7620	3 1/2″ BECO	3 1/2″ BECO	Cat/Reedrill/SKS/SKFX/MD	928	422
5	127	3/4	19	30	9144	3 1/2″ BECO	3 1/2″ BECO	Cat/Reedrill/SKS/SKFX/MD	1102	501
5	127	3/4	19	35	10668	3 1/2″ BECO	3 1/2″ BECO	Cat/Reedrill/SKS/SKFX/MD	1283	583
5 1/2	140	1	25.4	7	2140	4 1/2″ API	4 1/2″ API	Cat/Reedrill/SKS/SKFX/MD	394	179
5 1/2	140	1/2	12.7	29′ 9 53/64″	8784	4″ BECO x 4″ BECO		Cat/Reedrill/SKS/SKFX/MD	757	344
5 1/2	140	1/2	12.7	30	9144	4″ BECO	4″ BECO	Cat/Reedrill/SKS/SKFX/MD	856	389
5 1/2	140	3/4	19	30	9144	3 1/2″ DIBH	3 1/2″ DIBH	Cat/Reedrill/SKS/SKFX/MD	1256	571
5 1/2	140	1/2	12.7	35	10668	3 1/2″ DIBH	3 1/2″ DIBH	Cat/Reedrill/SKS/SKFX/MD	1003	456
5 1/2	140	1	25.4	35	10668	4 1/2″ API	4 1/2″ API	Cat/Reedrill/SKS/SKFX/MD	1692	769

T64 Carousel

Pipe Diameter		Wall Thickness		Length		Box Thread	Pin Thread	Rig/Wrench Type	Weight
Imperial (inch)	Metric (mm)	Imperial (inch)	Metric (mm)	Imperial (Feet)	Metric (mm)	Box Thread	Pin Thread	Rig/Wrench Type	(lb)	(kg)
3 1/2	89	11/32	8.8	20	6096	2 3/8″ IF	2 3/8″ IF	Schramm-Carousel	235	107
3 1/2	89	25/64	10	20	6096	2 3/8″ IF	2 3/8″ IF	Schramm-Carousel	277	126
4 1/2	114	11/32	8.8	19′ 8 7/32″	6000	2 7/8″ IF	2 7/8″ IF	Schramm-Carousel	330	150
4 1/2	114	11/32	8.8	19′ 8 7/32″	6000	3 1/2″ API	3 1/2″ API	Schramm-Carousel	336	153
4 1/2	114	11/32	8.8	20	6096	2 7/8 IF	2 7/8″ IF	Schramm-Carousel	336	153
4 1/2	114	11/32	8.8	20	6096	3 1/2″ API	3 1/2″ API	Schramm-Carousel	334	152
4 1/2	114	11/32	8.8	20	6096	NC35	NC35	Schramm-Carousel	332	151
4 1/2	114	1/2	12.7	20	6096	3 1/2″ API	3 1/2″ API	Schramm-Carousel	444	202
4 1/2	114	11/32	8.8	25	7620	2 7/8″ IF	2 7/8″ IF	Schramm-Carousel	416	189
4 1/2	114	11/32	8.8	25	7620	3 1/2″ API	3 1/2″ API	Schramm-Carousel	416	189
4 1/2	114	1/2	12.7	25	7620	3 1/2″ API	3 1/2″ API	Schramm-Carousel	550	250
4 1/2	114	11/32	8.8	8	2438	3 1/2″ API	3 1/2″ API	Schramm-T64	163	74
4 1/2	114	11/32	8.8	12	3658	3 1/2″ API	3 1/2″ API	Schramm-T64	224	102
4 1/2	114	11/32	8.8	20	6096	3 1/2″ API	3 1/2″ API	Schramm-T64	350	159
4 1/2	114	11/32	8.8	20′ 6″	6248	3 1/2″ API	3 1/2″ API	Schramm-T64	354	161
4 1/2	114	11/32	8.8	17	5182	3 1/2″ API	3 1/2″ API	Schramm-T64	469	213
4 1/2	114	11/32	8.8	25	7620	3 1/2″ API	3 1/2″ API	Schramm-T64	429	195
5 1/2	140	1	25.4	35	10668	4 1/2″ API	4 1/2″ API	Cat/Reedrill/SKS/SKFX/MD	1692	769
